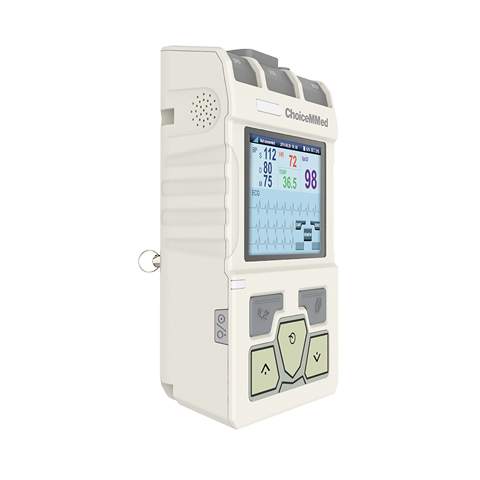

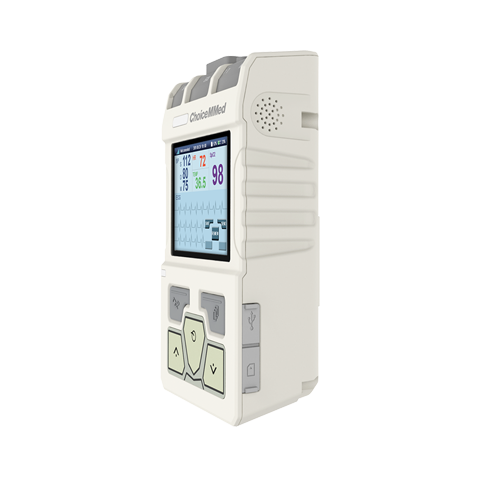

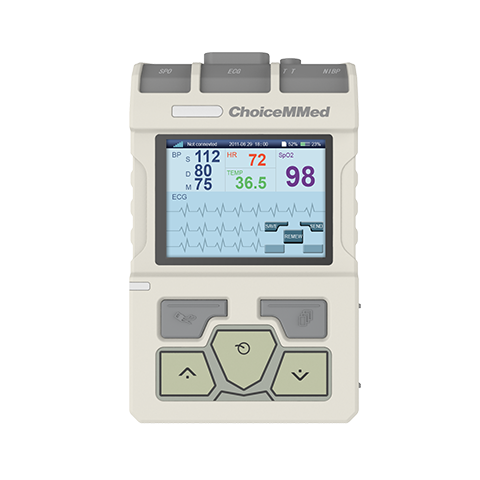

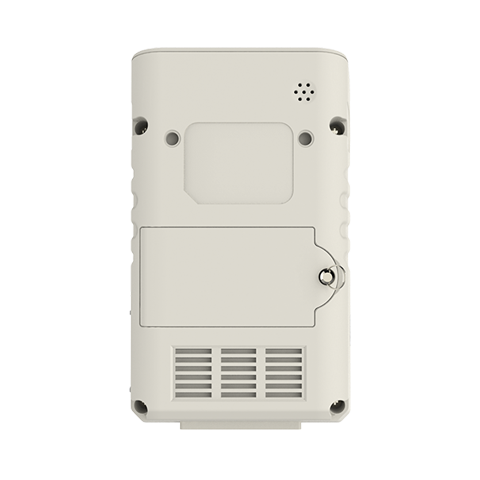

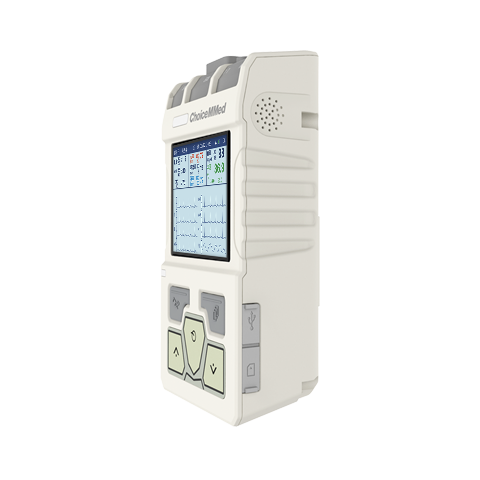

Multi Parameter Telemetry Monitoring System
MMED6000RD111

-Colorful TFT display
-Smart design, easy to use and portable size
-Real time monitoring NIBP, Respiratory Rate, SpO₂, ECG, Pulse rate and Temperature
-Wireless real time data transfer, powerful compatibility and easy to install
-Standard accessaries: 2GB SD card, easy to stock the data for 720 hours
-Humanization design: choose NIBP setting from manual or automatic check




Multi Parameter Telemetry Monitoring System
MMED6000RD111





ECG
Provided different specifications and models of 5 lead ECG
Heart rate
The scope of measurement: 15 ~ 300bpm
Measurement accuracy: ＜100bpm, ±1bpm; ≥100bpm ,±2%
Resolution: 1bpm
Respiratory Rate
Range: 7–120 bpm
Resolution: 1 bpm
Accuracy:7–80bpm, ±2bpm
80–100bpm, ±3bpm
100–120bpm ±5bpm
SpO2
Measurement range : 70%-100%
Resolution : 1%
Measurement accuracy :70%-100%, ±2%;Pulse rate measurement error:±2bpm;
NIBP
Pressure measurement range: 0 ~ 280 mmHg
pressure resolution: 1 mmHg
pressure measurement error: ±5 mmHg
The largest standard deviation: ±8 mmHg
Cuff aeration time: ≤ 10s
Temperature
Resolution measurement range: 25~45℃
Resolution: 0.1℃ Accuracy: 37℃~39℃, ±0.1℃, the other ±0.2℃
weight
≤ 600g (including battery)
Dimension
170mm(L) X 110mm(W) X 55mm(H)
